Draw Pins (Lift Arm Pins)

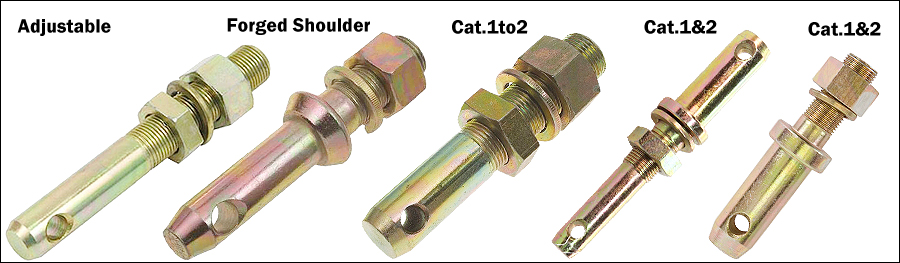

Forged and adjustable Category 0 through 3 draw pins for a variety of applications. All pins are yellow zinc dichromate plated.
|
PART
NUMBER |
REFERENCE
NUMBER |
CAT
|
DESCRIPTION
|
PIN DIAM.
|
USABLE LENGTH
|
OVERALL LENGTH
|
THREAD DIAM,
|
THREAD LENGTH
|
WEIGHT
(Ibs.) |
|---|---|---|---|---|---|---|---|---|---|
| MWLAP7220 | P7220 | 0 | Adjustable; universal | 5/8″ | Adj. | 3-7/8″ | 5/8″ NF | 2″ | 0.4 |
| MWLAP7228 | P7228 | 0 | Forged; universal | 5/8″ | 1-7/16″ | 3-7/8″ | 5/8″ NF | 1-1/8″ | 0.4 |
| MWLAP7221 | P7221 | 0 to 1 | To work cat. 0 implements on cat. 1 tractor; adjustable |
7/8″ | 1-3/4″ | 4-1/2″ | 5/8″ NF | 2″ | 0.6 |
| MWLAP7224 | P7224 | 1 to 0 | To work cat. 1 implements on cat. 0 tractor; adjustable | 5/8″ | 2″ | 5″ | 7/8″ NF | 2-1/4″ | 0.6 |
| MWLAP722 | P722 | 1 | Adjustable; universal | 7/8″ | Adj. | 5″ | 7/8″ NF | 2-5/8″ | 1.1 |
| MWLAP728 | P728 | 1 | Forged; universal | 7/8″ | 1-3/4″ | 5-1/2″ | 7/8″ NF | 1-5/8″ | 1.1 |
| MWLAP7219 | P7219 | 1 | Adjustable; universal; extra long | 7/8″ | Adj. | 6-1/4″ | 7/8″ NF | 3-1/2″ | 1.3 |
| MWLAP7245 | P7245 | 1 | Forged; extra long | 7/8″ | 2-1/4″ | 6-1/2″ | 7/8″ NF | 2-1/4″ | 1.3 |
| MWLAP7244 | P7244 | 1 | Forged; replaces Ford 221218 | 7/8″ | 2-3/4″ | 5-1/8″ | 5/8″ NF | 1-3/8″ | 0.9 |
| MWLAP7247 | P7247 | 1 | Forged; replaces Ford 103283, MF662459M1, MF00955-7-7/8 | 7/8″ | 2″ | 5 | 5/8″ NF | 1-1/2″ | 0.9 |
| MWLAP7248 | P7248 | 1 | Forged; replaces Ford 131010, 195425M1, D0955-4-1/2 | 7/8″ | 1-3/4″ | 4-1/2″ | 5/8″ NF | 5/8″ | 0.8 |
| MWLAP7246 | P7246 | 1 to 2 | Forged; extra long to work cat. 1 implements on cat. 2 tractor |
1-1/8″ | 2-1/4″ | 6-5/16″ | 7/8″ NF | 2-1/4″ | 1.5 |
| MWLAP724 | P724 | 1 to 2 | Adjustable; to work cat. 1 implements on cat. 2 tractor |
1-1/8″ | Adj. | 5-1/4″ | 7/8″ NF | 2-7/16″ | 1.4 |
| MWLAP7240 | P7240 | 1 to 2 | Forged; to work cat. 1 implements on cat. 2 tractor |
1-1/8″ | 1-13/16″ | 5-1/4″ | 7/8″ NF | 1-5/8″ | 1.5 |
| MWLAP7249 | P7249 | 1 & 2 | Forged; universal | 1-1/8″ & 7/8″ | 2-1/16″ both | 8″ | 1″ NF | 1-1/4″ | 1.9 |
| MWLAP721 | P721 | 2 | Adjustable; universal | 1-1/8″ | Adj. | 6-1/8″ | 1-1/8″ NF | 3-3/8″ | 2.3 |
| MWLAP729 | P729 | 2 | Adjustable; universal; extra long | 1-1/8″ | Adj. | 7-1/2″ | 1-1/8″ NF | 4-1/2″ | 2.6 |
| MWLAP7212 | P7212 | 2 | Forged; universal | 1-1/8″ | 1-3/4″ | 6-1/8″ | 1-1/8″ NF | 2-3/8″ | 2.3 |
| MWLAP726 | P726 | 2 to 1 | Forged; to work cat. 2 implements on cat. 1 tractor |
7/8″ | 1-3/4″ | 5-3/4″ | 1-1/8″ NF | 2-3/8″ | 1.8 |
| MWLAP7211 | P7211 | 2 to3 | Adjustable; to work cat. 2 implements on cat. 3 tractor |
1-7/16″ | Adj. | 6-1/2″ | 1-1/8″ NF | 3-3/8″ | 2.9 |
| MWLAP7243 | P7243 | 2 to 3 | Forged; to work cat. 2 implements on cat. 3 tractor |
1-7/16″ | 1-7/8″ | 5-3/4″ | 1-1/8″ NF | 1-1/2″ | 3.0 |
| MWLAP7229 | P7229 | 3 | Forged; universal | 1-7/16″ | 2″ | 5-7/8″ | 1-3/8″ NF | 1-1/2″ | 3.5 |
