Forged Hitch Pins with Chain
Forged head swivel handle hitch pin with chain and 1/4” lynch pin. Yellow zinc dichromate plated.
|
PART
NUMBER |
REFERENCE NUMBER
|
PIN DIAM.
|
USABLE LENGTH
|
OVERALL LENGTH
|
WEIGHT
(lbs.) |
|
MWHPCL71011 |
P71011CL |
1/2″ |
4-1/4″ |
5-3/4″ |
0.5 |
|
MWHPCL71012 |
P71012CL |
1/2″ |
6-1/4″ |
7-3/4″ |
0.6 |
|
MWHPCL71021 |
P71021CL |
5/8″ |
4-1/4″ |
5-3/4″ |
0.7 |
|
MWHPCL71022 |
P71022CL |
5/8″ |
6-1/4″ |
7-3/4″ |
0.9 |
|
MWHPCL71031 |
P71031CL |
3/4″ |
4-1/4″ |
5-3/4″ |
1.0 |
|
MWHPCL71032 |
P71032CL |
3/4″ |
6-1/4″ |
7-3/4″ |
1.2 |
|
MWHPCL71042 |
P71042CL |
7/8″ |
6-1/4″ |
7-3/4″ |
1.6 |
|
MWHPCL71052 |
P71052CL |
1″ |
6-1/4″ |
7-3/4″ |
2.0 |
|
MWHPCL71062 |
P71062CL |
1-1/8″ |
6-1/4″ |
7-3/4″ |
2.5 |
|
MWHPCL71072 |
P71072CL |
1-1/4″ |
6-1/4″ |
7-3/4″ |
3.0 |

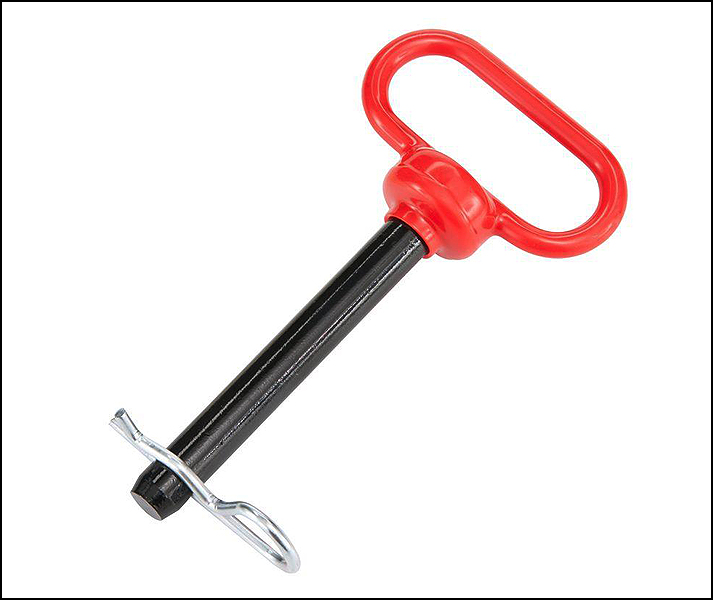

Red Head Hitch Pins
Designed for today’s demanding applications, these one piece, grade 5 performance, forged hitch pins are made from high strength steel and heat treated. Pin has black powder coating with a red vinyl coated head and handle. Zinc plated “R”clip pin included.
|
PART
NUMBER |
REFERENCE NUMBER
|
PIN DIAM.
|
USABLE LENGTH
|
OVERALL LENGTH
|
WEIGHT
(lbs.) |
|
MWRHP700511 |
P700511 |
1/2″ |
3-5/8″ |
6-5/8″ |
0.7 |
|
MWRHP700521 |
P700521 |
5/8″ |
4″ |
7″ |
0.9 |
|
MWRHP700522 |
P700522 |
5/8″ |
5-3/4″ |
9″ |
1.1 |
|
MWRHP700531 |
P700531 |
3/4″ |
4″ |
7″ |
1.1 |
|
MWRHP700532 |
P700532 |
3/4″ |
6-1/2″ |
9-1/2″ |
1.5 |
|
MWRHP700541 |
P700541 |
7/8″ |
4-1/4″ |
7-1/4″ |
1.4 |
|
MWRHP700542 |
P700542 |
7/8″ |
6-1/2″ |
9-1/2″ |
1.9 |
|
MWRHP700551 |
P700551 |
1″ |
4-3/4″ |
7-3/4″ |
1.9 |
|
MWRHP700512 |
P700552 |
1″ |
7-1/2″ |
10″ |
2.6 |
|
MWRHP700562 |
P700562 |
1-1/8″ |
8-1/2″ |
11-1/2″ |
3.3 |
|
MWRHP700572 |
P700572 |
1-1/4″ |
8-1/2″ |
11-1/2″ |
4.1 |
|
MWRHP700582 |
P700582 |
1-1/2″ |
8-1/2″ |
11-1/2″ |
5.0 |
