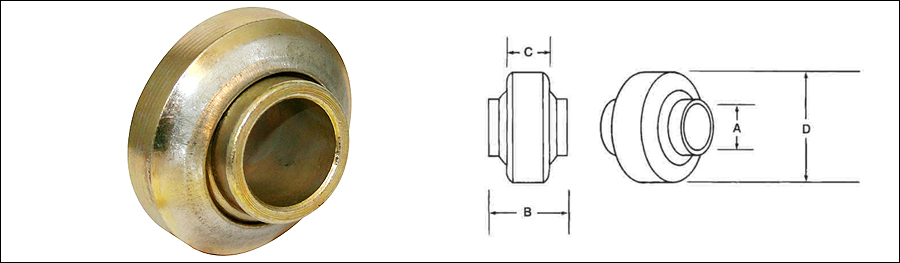

Top Link Ball Sockets
Weld-on top link ball sockets to fit Category 0 through Category 3 tractors.
Available in black oxide and yellow zinc dichromate plated versions.
|
PART
NUMBER |
REFERENCE
NUMBER |
CAT
|
DESCRIPTION
|
PIN HOLE SIZE
|
LENGTH THRU BORE
|
SLEEVE WIDTH
|
SLEEVE O.D.
|
WEIGHT
(lbs.) |
|---|---|---|---|---|---|---|---|---|
|
MWTBS213
|
B213
|
1
|
Standard duty; black oxide
|
3/4″
|
1-5/8″
|
3/4″
|
2″
|
0.6
|
|
MWTBS211
|
B211
|
2
|
Standard duty; black oxide
|
1″
|
1-3/4″
|
7/8″
|
2-3/8″
|
0.8
|
|
MWTBS2219
|
B2219
|
2
|
Heavy duty; black oxide
|
1″
|
1-3/4″
|
1-3/16″
|
2-3/4″”
|
1.8
|
| MWTBS2229 |
B2229
|
3
|
Standard duty; black oxide
|
1-1/4″
|
1-3/4″
|
1-9/32″
|
3-1/8″
|
1.8
|
|
MWTBS212
|
B212
|
1
|
Heavy duty; black oxide
|
3-4″
|
1-5/8″
|
7/8″
|
2-1/8″
|
0.7
|
|
MWTBS214
|
B214
|
2
|
Standard duty; plated
|
1″
|
1-3/4″
|
7/8″
|
2-3/8″
|
0.8
|
|
MWTBS215
|
B215
|
1
|
Heavy duty; plated
|
3/4″
|
1-5/8″
|
7/8″
|
2-1/8″
|
0.7
|
|
MWTBS216
|
B216
|
1
|
Standard duty; plated
|
3/4″
|
1-5/8″
|
3/4″
|
2″
|
0.6
|
|
MWTBS225
|
B225
|
1
|
Extra heavy duty; black oxide
|
3-4″
|
1-3/8″
|
7/8″
|
2-3/8″
|
0.9
|
|
MWTBS227
|
B227
|
2
|
Standard duty; black oxide
|
1″
|
1-1/4″
|
7/8″
|
2-3/8″
|
0.8
|
|
MWTBS228
|
B228
|
2
|
Standard duty; plated
|
1″
|
1-1/4″
|
7/8″
|
2-3/8″
|
0.8
|
|
MWTBS235
|
B235
|
1&2
|
Standard duty; black oxide
|
3/4″ & 1″
|
1-1/2″ & 1-1/4″
|
7/8″
|
2-3/8″
|
0.6
|
