Farm Clevises
Screwpin shackle type used formultiple hitches and crawlertractors.
|
Part No. |
Reference Number |
Body Dia |
Clevis Opening |
Usable Length |
Pin Dia |
Working Load Limit |
Weight |
|
MWFCL490401 |
CL490401 |
1/4″ |
15/32″ |
1-1/8″ |
5/16″ |
1,000 |
0.1 |
|
MWFCL490402 |
CL490402 |
5/16″ |
17/32″ |
1-1/4″ |
3/8″ |
2,000 |
0.2 |
|
MWFCL490403 |
CL490403 |
3/8″ |
23/32″ |
1-7/16″ |
7/16″ |
3,000 |
0.3 |
|
MWFCL490404 |
CL490404 |
7/16″ |
3/4″ |
1-11/16″ |
1/2″ |
4,000 |
0.5 |
|
MWFCL490405 |
CL490405 |
1/2″ |
13/16″ |
1-15/16″ |
5/8″ |
6,500 |
0.7 |
|
MWFCL490406 |
CL490406 |
5/8″ |
1-1/16″ |
2-1/2″ |
3/4″ |
9,000 |
1.5 |
|
MWFCL490407 |
CL490407 |
3/4″ |
1-1/4″ |
3″ |
7/8″ |
13,000 |
2.2 |
|
MWFCL490408 |
CL490408 |
7/8″ |
1-7/16″ |
3-1/4″ |
1″ |
15,000 |
3.5 |
|
MWFCL490409 |
CL490409 |
1″ |
1-11/16″ |
3-3/4″ |
1-1/8″ |
17,000 |
5.2 |
|
MWFCL490410 |
CL490410 |
1-1/8″ |
1-13/16″ |
4-1/4″ |
1-1/4″ |
24,000 |
7.0 |
|
MWFCL490411 |
CL490411 |
1-1/4″ |
2″ |
4-1/2″ |
1-3/8″ |
28,000 |
9.5 |

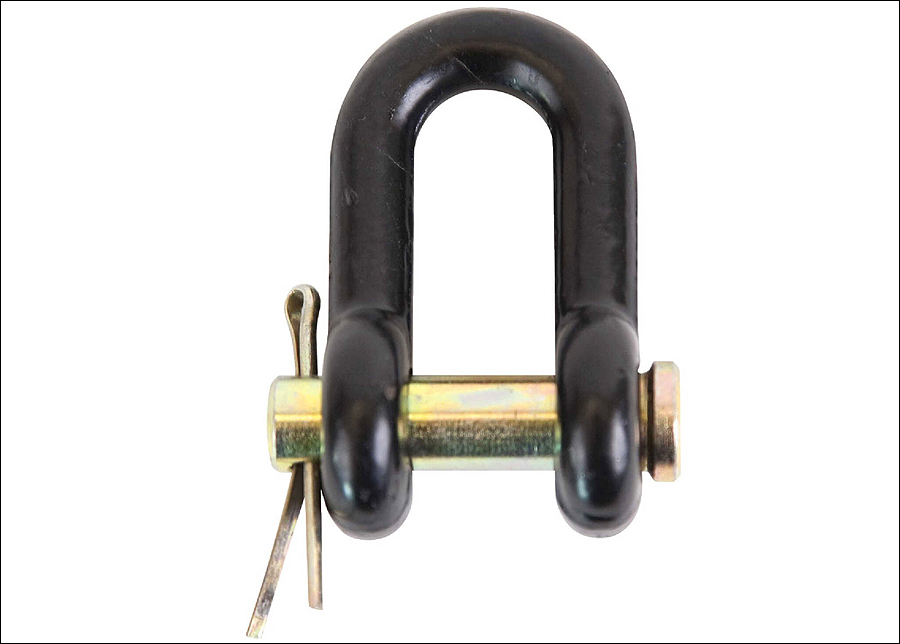

Utility Clevises
|
Part No.
|
Reference No.
|
Body Dia
ØA (Inches) |
Clevis Opening
B (Inches) |
Usable Length
C (Inches) |
Pin Dia
ØD (Inches) |
Working Load Limit
(lbs.) |
Weight
(lbs.) |
|
MWUTCS9593 |
CL490301 |
1/4″ |
15/32″ |
7/8″ |
5/16″ |
1,000 |
0.1 |
|
MWUTCS9594 |
CL490302 |
5/16″ |
17/32″ |
1″ |
3/8″ |
1,500 |
0.2 |
|
MWUTCS9595 |
CL490303 |
3/8″ |
21/32″ |
1-1/4″ |
7/16″ |
2,000 |
0.3 |
|
MWUTCS9596 |
CL490304 |
7/16″ |
23/32″ |
1-1/2″ |
1/2″ |
3,000 |
0.4 |
|
MWUTCS9597 |
CL490305 |
1/2″ |
13/16″ |
1-11/16″ |
5/8″ |
6,000 |
0.6 |
|
MWUTCS9598 |
CL490306 |
5/8″ |
1-1/16″ |
2″ |
3/4″ |
9,000 |
1.2 |
Mid-Links
|
Part No.
|
Reference No.
|
Chain Size
|
Working Load Limit
(lbs.) |
Weight
(lbs.) |
|
MWMLCL490501 |
CL490501 |
1/4″ Or 5/16″ |
4,700 |
0.3 |
|
MWMLCL490502 |
CL490502 |
3/8″ |
6,600 |
0.4 |
|
MWMLCL490503 |
CL490503 |
7/16″ Or 1/2″ |
11,300 |
1.0 |
|
MWMLCL490504 |
CL490504 |
5/8″ |
18,000 |
1.7 |
