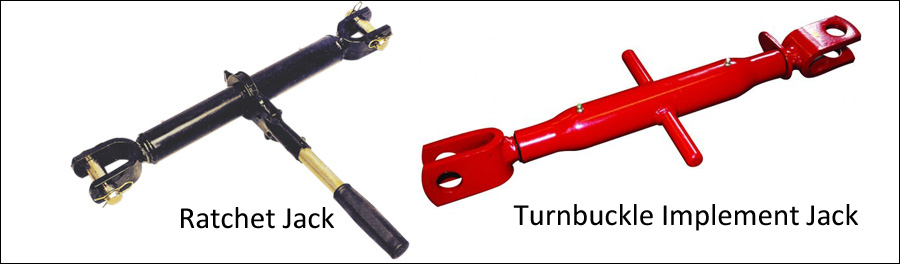

Ratchet Jacks
Implement jacks have multiple uses including the adjustment of implements and equipment. Replace hydraulic cylinders or old screw jacks in those applications where infrequent adjustment is needed.
|
Part No |
Popular Code |
Description |
Color |
Weight |
|
MWRJ1541 |
Sl1541 |
Heavy-duty ratchet jack with 1-1/4″ ACME threads and grease zerks; adjustable from 20″ closed to 28″ open; 1″ clevis pins, clip pins and handle included; black powder-coat finish |
Black |
15 |
|
MWRJ1541GT |
SL1541GT |
Heavy-duty ratchet jack with 1-1/4″ ACME threads and grease zerks; adjustable from 20″ closed to 28″ open; 1″ clevis pins, clip pins and handle included; primered finish |
Primer |
15 |
| MWRJ53 | SL153 | Turnbuckle implement jack with 1-1/4” NC threads; adjustable from 20” closed to 28” open; 1” pin holes | Red | 11.1 |
| MWRJ1548 | SL1548 | Handle for ANG ratchet jacks | Plated | 0.7 |
| MWRJ7910 | P7910 | Clip pin for 1” diameter hydraulic cylinder pins; also available packed four per blister box part number P7910YDU | Plated | 0.02 |
Hitch Balls
Class I, II, III and IVchrome hitch balls.
|
Part No. |
Reference |
Description |
Bulk Weight |
|
MWHB100504 |
HB100504 |
1-7/8″ chrome hitch ball with 3/4″ stud; 1-3/4″ stud length; VESC Class I |
1.6 |
|
MWHB100602 |
HB100602 |
2″ chrome hitch ball with 3/4″ Bolt; economy type; VESC Class I |
1.8 |
|
MWHB100604 |
HB100604 |
2″ chrome hitch ball with 3/4″ stud; 1-3/4″ stud length; VESC Class II |
1.8 |
|
MWHB100608 |
HB100608 |
2″ chrome hitch ball with 1″ stud; 2-1/8″ stud length; VESC Class III |
2.5 |
|
MWHB100703 |
HB100703 |
2-5/16″ chrome hitch ball with 1-1/4″ stud; 2-1/8″ stud length; VESC Class IV |
4.0 |
|
MWHB100705 |
HB100705 |
2-5/16″ chrome hitch ball with 1-3/8″ stud; 2-31/64″ stud length; VESC Class IV |
4.4 |
|
MWHB100509 |
HB100509 |
Hitch Ball cover: fits 1-7/8″ and 2″ balls : flexible gray vinyl |
0.1 |
